Description

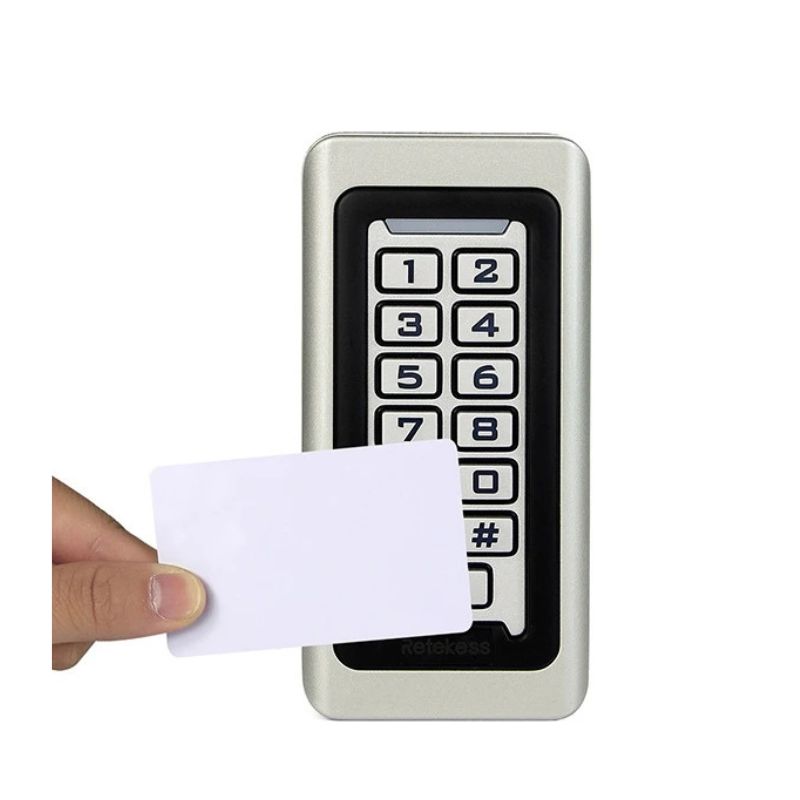

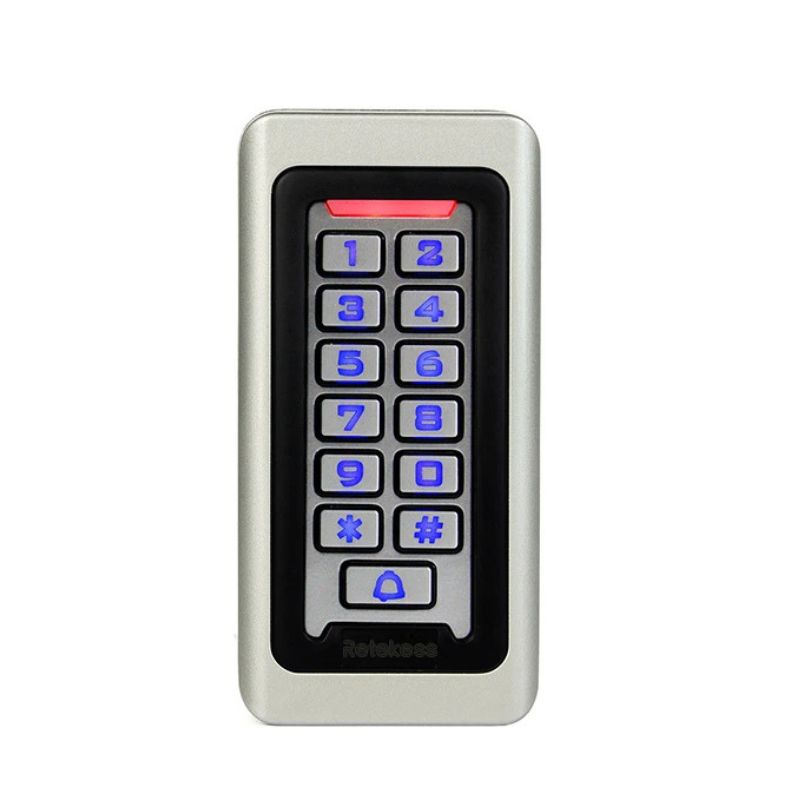

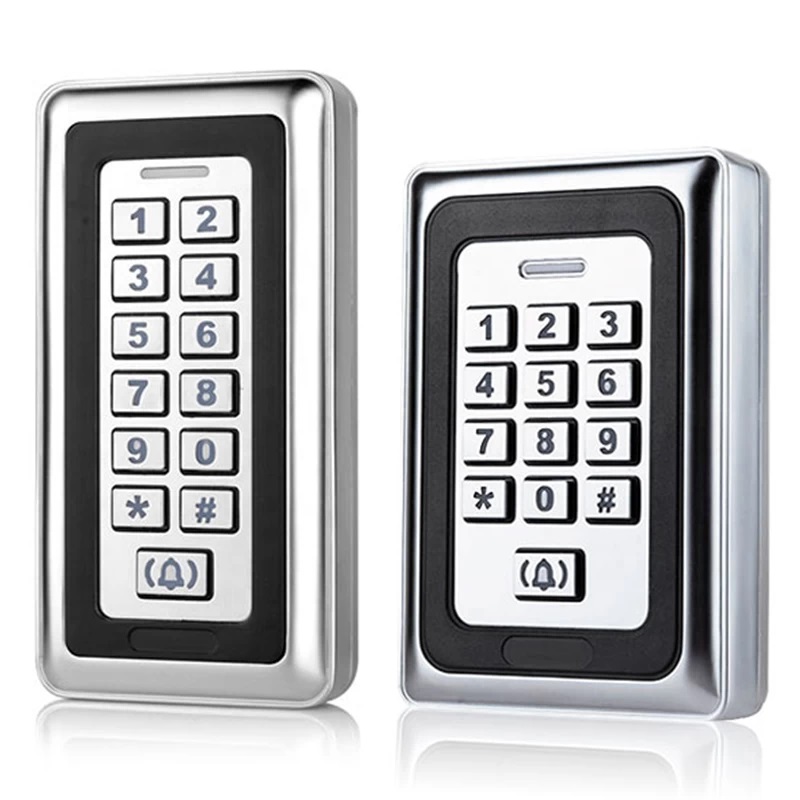

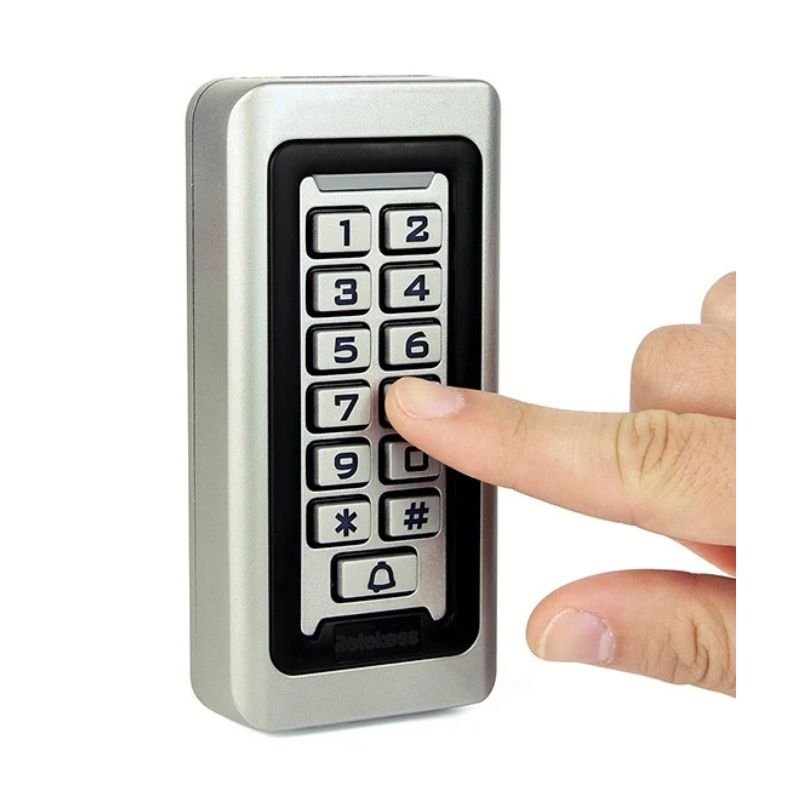

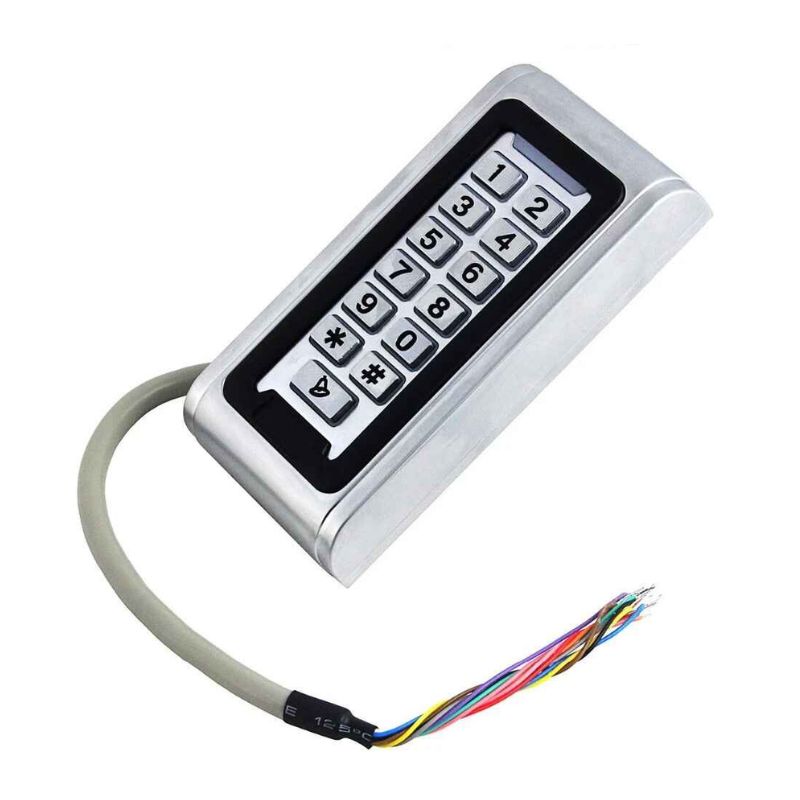

- Product Name: Keypad Proximity Card RFID Access Control Door Entry System
- Special Feature: Touch Screen
- Power Supply: 12–24VDC
- Unlock Relay: 12VDC / 2A
- Electric Lock Output: Max 3A
- Capacity: Supports up to 2000 effective cards
- Password: 4-digit PIN code
- Compatible Cards: 125KHz EM standard card
- Keywords: Door access control, Security systems, 125KHz RFID Card Reader
- Type: RFID Door Access Control System
- Free Installation within Lagos
| Parameter | Description |
|---|---|
| Power Supply | 12VDC + 10% |
| Doorbell Button | 1 |
| Interface to Alarm | 1 |
| Access Control Interface | WG26 interface |
| Size | 4.64 × 2.2 × 0.78 in |
| Unlock Relay | 12VDC / 2A |
| Electric Lock Output | Max 3A |
| Alarm Output | Max 20A |
| Output Short-Circuit Protection | Max 0.1ms |
| Effective Cards | 2000 |
| Ambient Temperature | -49°F to 140°F |
| Relative Humidity | 10% – 90% RH |
| Password | 4-digit PIN code |
| Compatible Cards | 125KHz EM standard card |
| Card Reading Distance | 1.18 – 2.36 in |
| Electric Locking Interface | Relay output or input (optional) |
| Open Access | 1 |
