- Works with 4G SIM card
This camera does not have a WiFi connection, but instead uses mobile internet from a SIM card. The SIM is inserted in the same way as in a phone.
- Light alarm
This camera has a built-in light that can be activated automatically when motion is detected. This sends a clear signal to the person in front of the camera that they are being watched. The light can also be turned on manually in case you want to see in color in the dark.
- Controllable camera
The camera has a motorized body that allows you to rotate it horizontally and vertically. All you need to do is slide your finger in the desired direction on your phone’s screen.
- Motion notifications
The camera can send push notifications to your mobile phone if it detects motion. You can set it to notify you only at a certain interval (for example, only at night).
- Automatic object tracking
The camera automatically tracks moving objects that are in its field of view. Once the object moves out of its field of view or its movement stops, the camera returns to its usual position.
- Dust and moisture resistant
The camera housing protects against moisture and small particles (dust and dirt). You can mount it outdoors without worrying about it getting damaged.

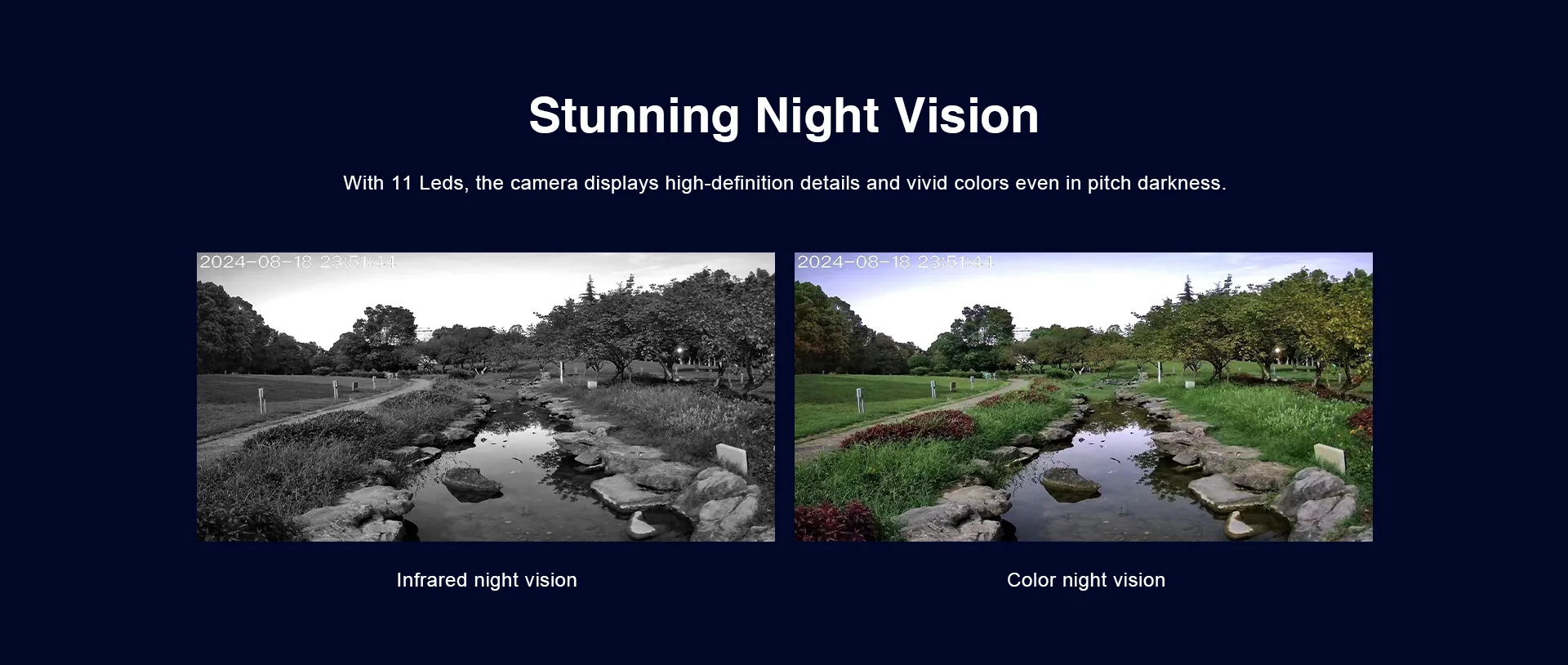

- Infrared night vision
The camera is equipped with infrared (IR) night vision. When it gets dark or you turn off the lights, the camera automatically switches to night mode (black and white) and allows you to see, even in complete darkness.
SPECIFICATION

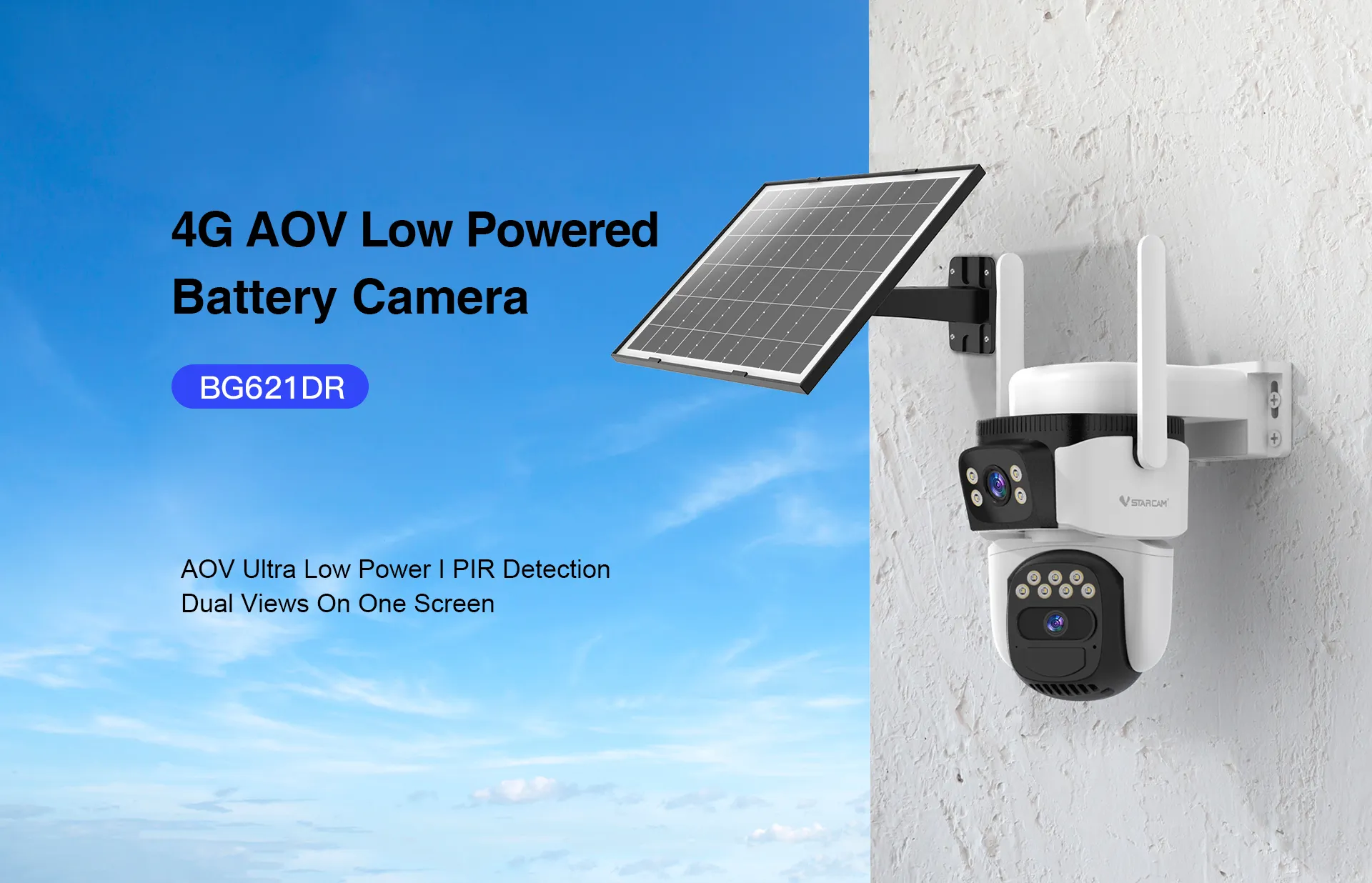

Model No.
|
BG621DR
|
Operating system
|
Linux
|
Online visitor
|
Supports 4 visitors at the same time
|
APP
|
O-KAM Pro
|
CPU
|
T23ZN
|
Internal storage
|
512MB
|
Image sensor
|
GC2083+GC2083+GC2083
|
Min. Illumination
|
0.8Lux/F1.4(color mode),0.3Lux/F1.4(B&W mode)
|
Lens
|
Panorama camera: focal length 4mm,1G3P Panorama camera: focal length 4mm(1G3P )
|
Sensor performance
|
Support automatic white balance, automatic gain control and automatic backlight compensation
|

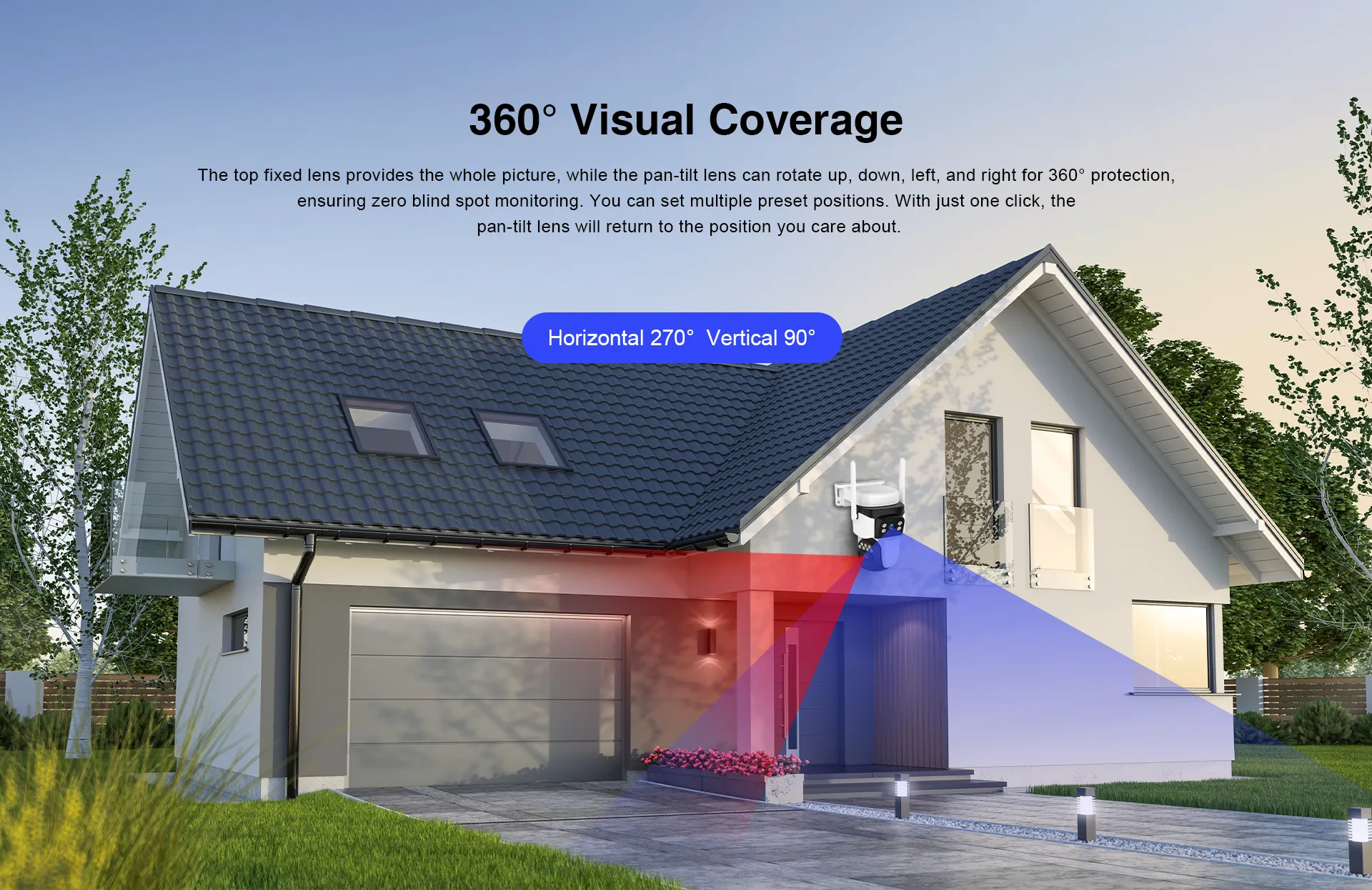

Pan&tilt
|
Horizontal 270°, Vertical 90°
|
Viewing angle
|
D100°
|
Night vision
|
Color night vision, dual light sources, 11pcs dual-color dual light source lights
|
Compression standard
|
MJPEF/JPEG
|
Multi stream
|
Mainstream:1080P/15fps, sub stream:360P/15fps
|
IR control
|
When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is
disabled, IR is off and ICR is fixed in the day vision mode. |
Bit rate
|
CBR/VBR two rate control modes, and the output rate range is 128~4096kbps
|
Image adjustment
|
Vertical, horizontal adjustable, OSD display
|
Input
|
Built-in-38dB microphone
|
Output
|
Built-in 8Ω1W speaker
|
Sampling frequency/bit width
|
8KHz/16bit
|
Compression standard/Bit Rate
|
G711A
|
Human detection
|
Human detection, filtering invalid video contents
|
Area detection
|
Free daub, only monitoring the areas concerned by users
|
Smart notification sound
|
Different devices push different sounds, so that you can know exactly which device is triggered
|
Intelligent alarm sound
|
Set different equipment alarm sounds according to different scenarios
|
More AI functions (testing)
|
Pets, vehicles, parcels, etc
|
Networking
|
Use APP to scan the QR code on device to add; Use the device to scan QR code on APP to add
|
Cat1 China
|
FDD:B1/B3/B5/B8 TDD:B34/B38/B39/B40/B41
|
Cat4 Overseas
|
European/Japanese/American versions
|
Key 1
|
On/Off key
|

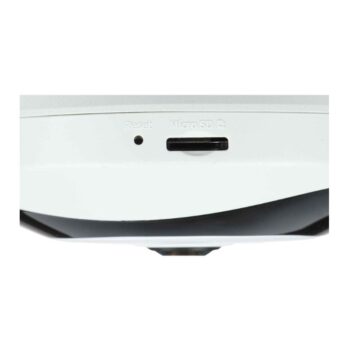

Reset key
|
long press to restore factory settings
|
External TF card
|
Support TF card (up to 256GB)
|
Cloud storage
|
Free loop cloud storage
|
Sound light alarm
|
Sound and light alarm, 11 infrared + 11 white lights, full color night vision
|
Alarm detection
|
Support human detection, PIR detection range: 10 meters
|
Rated voltage
|
DC5V±5%
|

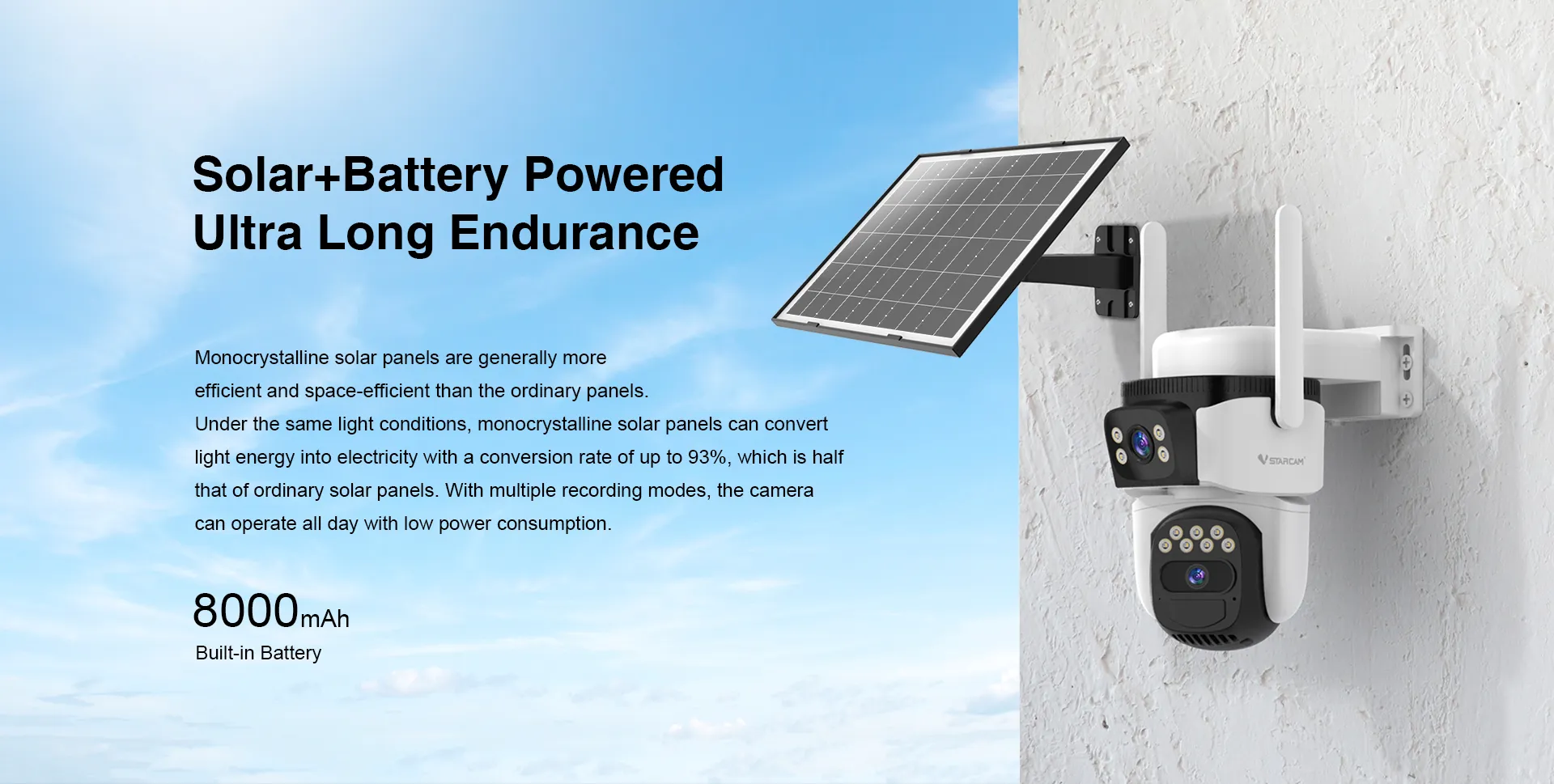

Power supply
|
Built in 8000mAh battery
|
Consumption
|
Sleep standby 300uA, working: 400MA-1.8A max
|
Operating condition
|
Working temperature: -10~55℃, working humidity <90%
|
Weight
|
Net weight: 680g
|
Size
|
Camera:183*164*122mm
|
Packing list
|
Camera*1, manual*1, solar panel*1, solar panel bracket*1
|
Carton size
|
625x485x305mm 12PCS/Ctn
|
