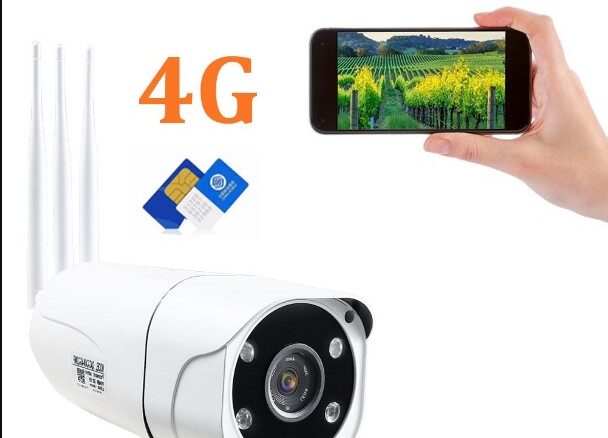

How to set up and install a 4G camera with batteries

Setting up and installing a 4G camera with batteries involves several steps. These cameras are typically used for remote surveillance where Wi-Fi isn’t available, relying on cellular networks for connectivity. Here’s a general guide:

1. Unbox and Check Contents

• Ensure you have all necessary components: the 4G camera, mounting brackets, screws, batteries, SIM card, and any tools required.

2. Charge or Insert Batteries

• If the camera uses rechargeable batteries, fully charge them first. If it uses standard batteries, insert them according to the polarity indicated in the battery compartment.

3. Insert the SIM Card

• Ensure the SIM card is compatible with the camera (most require a micro or nano SIM).
• Insert the SIM card into the designated slot, usually found in the camera’s battery compartment or another protected area.
• Ensure the SIM card has a data plan activated and supports 4G LTE.

4. Install the Camera App

• Download the camera’s companion app on your smartphone (available in the App Store or Google Play).
• Create an account and log in to the app.

5. Power On the Camera

• Turn on the camera by pressing the power button. Some models automatically power on when the batteries are inserted.

6. Connect to the Camera

• Follow the app instructions to connect to the camera. This usually involves scanning a QR code on the camera or manually entering the camera’s serial number.

7. Configure Camera Settings

• Set up the camera’s settings via the app:
  • Network Settings: Ensure the camera is connected to the 4G network. The app might require you to input the APN (Access Point Name) settings, provided by your mobile carrier.
  • Video Quality: Adjust the video resolution and frame rate.
  • Motion Detection: Configure the motion detection sensitivity and notification preferences.
  • Cloud Storage or SD Card: Set up storage options if the camera supports local or cloud storage.

8. Mount the Camera

• Choose a suitable location with a strong 4G signal.
• Use the provided mounting bracket and screws to secure the camera to a wall, pole, or another stable surface.
• Ensure the camera is angled correctly to cover the desired area.

9. Test the Camera

• Use the app to view the live feed and ensure everything is working as expected.
• Test the motion detection and notifications to ensure you receive alerts as intended.

10. Final Adjustments

• Make any final adjustments to the camera’s position or settings.
• Ensure the camera is securely mounted and weatherproofed if installed outdoors.

11. Regular Maintenance

• Periodically check the battery levels and recharge or replace them as needed.
• Clean the camera lens to ensure clear video footage.

If you encounter any issues during setup, consult the camera’s manual or contact customer support for assistance.

Certainly! Here’s a more detailed breakdown of each step, along with additional tips and considerations:

1. Unbox and Check Contents

• Components to Expect:
  • 4G Camera: The main device, often with built-in antennas.
  • Mounting Hardware: Brackets, screws, and possibly anchors for mounting on different surfaces.
  • Batteries: Rechargeable or standard batteries, depending on the model.
  • SIM Card Slot Tool: If the SIM slot is internal, a tool to open the compartment.
  • Manual: Instructions and warranty information.
• Initial Inspection:
  • Ensure that there’s no physical damage.
  • Verify that all items match the manual’s checklist.

2. Charge or Insert Batteries

• Charging:
  • Use the supplied charger if rechargeable batteries are provided.
  • For best performance, let the batteries charge fully before installation (typically indicated by a green light).
• Battery Installation:
  • Follow the polarity indicators closely (+/-).
  • Ensure batteries are seated properly to avoid connection issues.
• Battery Management:
  • If your camera supports solar panels, consider installing one to keep the batteries charged continuously.
  • If using disposable batteries, opt for high-capacity lithium ones for longer life.

3. Insert the SIM Card

• SIM Card Preparation:
  • Verify that the SIM card is active and has sufficient data.
  • Check if the SIM requires a PIN code and disable it, as many cameras do not support PIN entry.
• Inserting the SIM:
  • Power off the camera (if applicable) before inserting the SIM.
  • Place the SIM card carefully in the slot, ensuring it clicks into place.
• Data Plan Considerations:
  • Choose a data plan that matches your usage needs (e.g., a higher plan for continuous recording).
  • Some carriers offer special IoT/M2M (Machine to Machine) plans specifically for devices like cameras.

4. Install the Camera App

• App Installation:
  • Search for the app by the camera brand name in the app store.
  • Ensure that the app has good reviews and is updated frequently.
• Account Setup:
  • Use a strong, unique password for account creation to protect your camera feed.
  • Enable two-factor authentication if the app offers it.

5. Power On the Camera

• Initial Boot:
  • After powering on, the camera may take a few minutes to establish a connection to the 4G network.
  • Some cameras have an indicator light to show the connection status (e.g., green for connected, red for an error).
• Troubleshooting:
  • If the camera doesn’t connect, check the SIM card and ensure there’s adequate 4G coverage in the area.
  • Reboot the camera if needed or consult the manual for specific error codes.

6. Connect to the Camera

• Pairing Process:
  • The app might prompt you to scan a QR code on the camera or box.
  • Alternatively, enter the camera’s unique ID manually.
• Network Settings:
  • Some cameras may automatically detect the carrier’s APN settings, while others may require manual entry.
  • Verify that the correct APN is used by checking with your mobile provider.

7. Configure Camera Settings

• Motion Detection:
  • Set motion detection zones in the app to focus on specific areas (e.g., doorways, driveways).
  • Adjust sensitivity to reduce false alarms from animals or shadows.
• Video Quality:
  • Higher resolutions use more data. Choose a resolution that balances quality and data usage.
  • Consider enabling night vision if your camera supports it and the area is dimly lit.
• Storage Options:
  • Local Storage: Insert an SD card into the camera (if supported) and format it using the app.
  • Cloud Storage: Subscribe to the camera manufacturer’s cloud service if available. This usually offers additional features like extended recording history and easy access from anywhere.

8. Mount the Camera

• Location Considerations:
  • Choose a spot with a clear view and minimal obstructions.
  • Avoid placing the camera where it could be easily tampered with.
  • Ensure it’s within range of the 4G signal and away from sources of interference.
• Mounting Process:
  • Use the appropriate hardware for the surface (e.g., anchors for drywall, screws for wood).
  • Ensure the camera is securely fastened and not wobbly.
  • Some cameras allow for angle adjustment post-installation—use this to fine-tune the view.
• Weatherproofing:
  • If installing outdoors, ensure all connections are sealed, and the camera housing is properly closed to prevent water ingress.
  • Consider using additional weatherproof covers if the camera is exposed to harsh conditions.

9. Test the Camera

• Live View Test:
  • Access the live feed via the app to check the camera’s view and ensure clarity.
  • Walk in front of the camera to test motion detection and ensure it triggers alerts.
• Notification Test:
  • Set up push notifications in the app to alert you to any detected motion.
  • Verify that notifications are prompt and include snapshots or video clips if supported.

10. Final Adjustments

• Angle Adjustments:
  • Fine-tune the camera’s angle to cover blind spots or better focus on key areas.
  • Use the app’s grid lines (if available) to level the camera.
• Secure Access:
  • Change the default password for accessing the camera via the app or a web portal.
  • Regularly update the app and camera firmware for security patches.

11. Regular Maintenance

• Battery Check:
  • Regularly monitor the battery level via the app, especially in cold weather, which can reduce battery life.
  • Replace or recharge batteries before they are fully depleted to avoid downtime.
• Lens Cleaning:
  • Gently clean the lens with a microfiber cloth to prevent dirt or dust from affecting video quality.
  • Avoid harsh chemicals that could damage the lens or camera housing.
• Firmware Updates:
  • Keep the camera’s firmware updated to the latest version for new features and security improvements.
  • Updates can usually be done through the app.

12. Optional Accessories

• Solar Panels: To extend battery life, especially for cameras in remote locations.
• External Antennas: If the 4G signal is weak, an external antenna can improve connectivity.
• Security Enclosures: For added protection against tampering or harsh weather conditions.

13. Ongoing Monitoring

• Remote Access:
  • Check the camera feed remotely at intervals to ensure everything is functioning as expected.
  • Use the app’s history feature to review past footage, especially after alerts.
• Plan for Data Overages:
  • Monitor data usage to avoid overages, particularly if you have limited data.
  • Consider setting up alerts for when data usage is high, or use a camera with data compression features.

With these detailed steps, your 4G camera should be successfully installed and configured, providing reliable surveillance wherever needed.
